Geocell Plant
Overview
Geocell plants are industrial systems used to manufacture geocells—three-dimensional honeycomb-like structures made from polymer sheets such as HDPE. These structures are widely used in civil engineering for soil stabilization, erosion control, slope protection, and load distribution.
Working Principle
Polymer sheets (HDPE/PP) are produced through extrusion.
Sheets are cut into strips of required dimensions.
Ultrasonic welding or thermal bonding connects strips to form honeycomb cells.
The structure expands on-site into a 3D cellular confinement system.
Finished geocells are folded, packed, and transported for installation.
Types
HDPE Geocell Plant
Textured Surface Geocell Plant
Perforated Geocell Plant
High-Strength Reinforced Geocell Plant
Automatic Geocell Production Plant
Applications
Road base reinforcement and load support

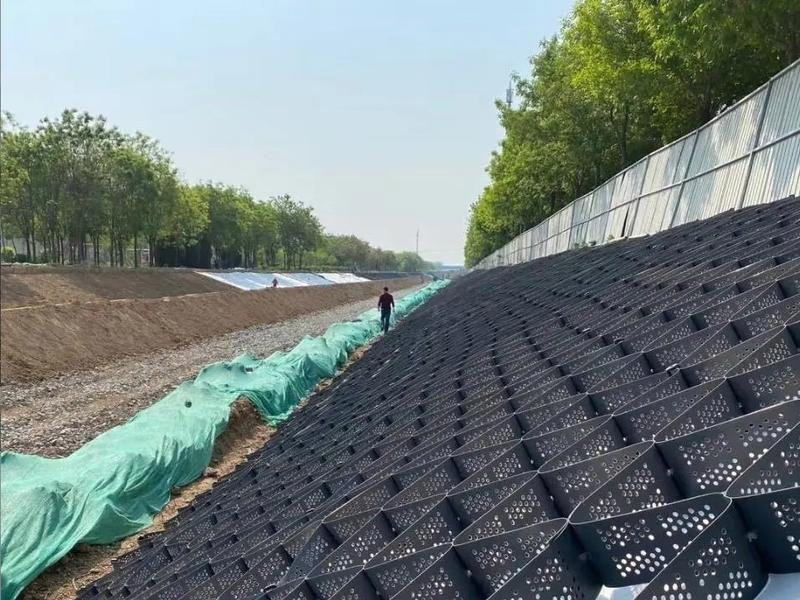

Slope protection and erosion control
Retaining walls and embankments
Railway and infrastructure stabilization
Landscaping and green reinforcement systems
Technical Specifications
Production capacity: 100 – 500 kg/hr
Strip thickness: 1 mm – 2 mm
Cell height: 50 mm – 200 mm
Power consumption: 50 – 200 kW
Control system: PLC / automatic control
Key Features
3D honeycomb structure for soil confinement
High strength and load distribution capability
Improves stability of roads and slopes
Efficient and continuous production
Customizable cell size and structure
Certifications
ISO 9001 (Quality Management)
ISO 14001 (Environmental Management)
CE Certification
Geosynthetic Industry Standards (ASTM / EN / BIS)
Benefits
Improves soil strength and load-bearing capacity
Widely used in infrastructure and construction projects
Flexible and easy to install on-site
Cost-effective solution for soil stabilization
Supports sustainable construction practices
Challenges
High initial investment cost
Maintenance of welding and extrusion systems
Requires skilled workforce
Strict quality control for structural performance
