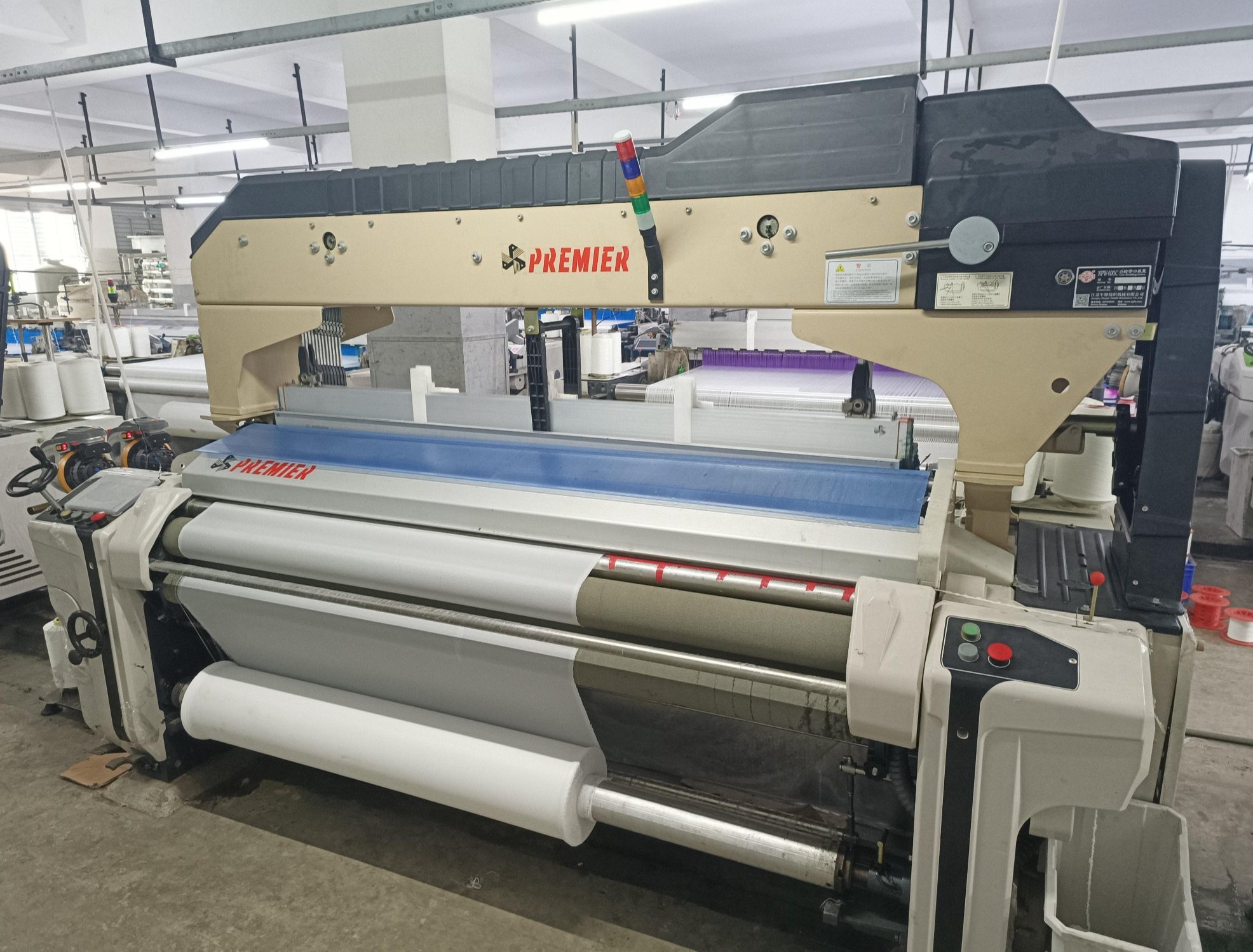

Water Jet Loom
Overview
Water jet looms are high-speed weaving machines that use a fine jet of water to insert the weft yarn through the warp shed. They are mainly used for weaving synthetic filament yarns such as polyester and nylon due to their smooth surface and water resistance.
Working Principle
A high-pressure water jet is used to carry the weft yarn across the warp shed.
Warp yarns are arranged longitudinally and opened to form a shed.
The weft yarn is inserted rapidly with the help of water flow.
Continuous weaving occurs with high efficiency and speed.
Types
Single Nozzle Water Jet Loom
Multi Nozzle Water Jet Loom
Automatic High-Speed Water Jet Loom
Textile Industry Applications
Polyester and nylon fabrics
Waterproof fabrics (raincoats, umbrellas)
Home furnishing fabrics
Technical textiles
Lightweight garment fabrics
Technical Specifications
Speed: Up to 600 – 1200 picks/min
Fabric width: 150 cm – 360 cm
Water consumption: Moderate to high
Power consumption: 2 – 6 kW
Control system: PLC / electronic control
Key Features
Very high-speed weaving capability
Smooth and efficient weft insertion using water
Low maintenance due to fewer moving parts
Energy-efficient operation
Low noise and vibration
Certifications
ISO 9001 (Quality Management)
ISO 14001 (Environmental Management)
CE Certification
Textile Machinery Safety Standards
Benefits
Extremely high production efficiency
Cost-effective for synthetic fabric production
Produces smooth and uniform fabrics
Ideal for large-scale textile industries
Reduced mechanical wear and tear
Challenges
High water consumption
Not suitable for natural fibers like cotton
Requires water treatment and recycling system
Limited flexibility for heavy or textured yarns
