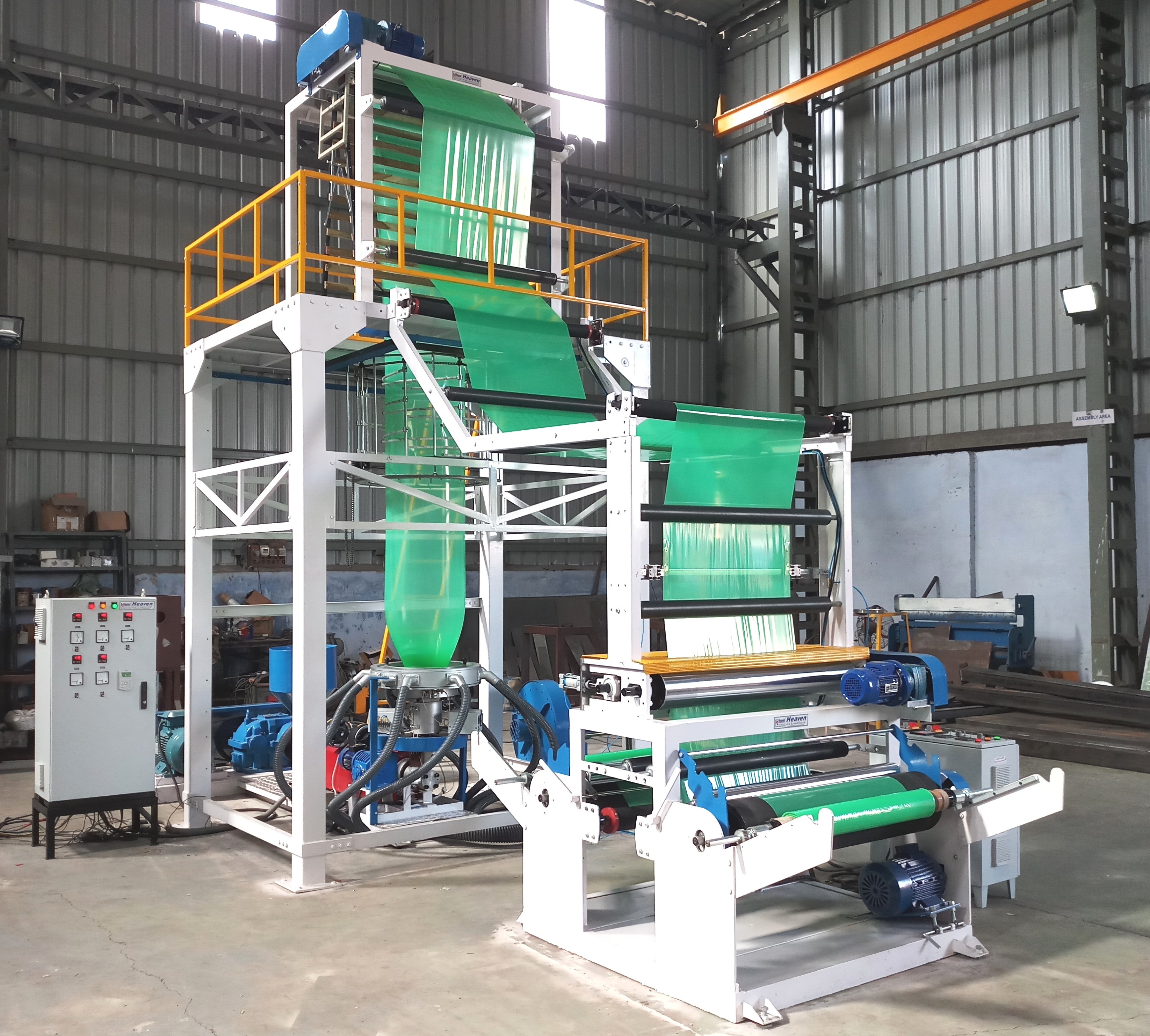

Blown Film Extrusion Plant
Overview
Blown film extrusion plants are industrial systems used to produce plastic films by extruding molten polymer into a tubular bubble. The process allows for flexible film production with good strength and durability, making it widely used in packaging, agriculture, and industrial applications.
Working Principle
Polymer granules (LDPE, LLDPE, HDPE) are melted in an extruder.
Molten material is extruded through a circular die to form a tube.
Air is blown into the tube to form a bubble, stretching the film.
The bubble is cooled using air rings to stabilize film thickness.
The film is collapsed and wound into rolls for further processing.
Types
Single Layer Blown Film Plant
Multi-Layer Blown Film Plant (3 Layer / 5 Layer)
Recycling Blown Film Plant
Automatic High-Speed Blown Film Plant
Applications
Plastic carry bags and shopping bags
Packaging films and liners
Agricultural films (mulch, greenhouse)
Industrial and heavy-duty films
Stretch and shrink film base material
Technical Specifications
Output capacity: 50 – 500 kg/hr
Film width: 200 mm – 2000 mm
Film thickness: 10 – 200 microns
Power consumption: 20 – 120 kW
Control system: PLC / automatic control
Key Features
Strong and durable film with good mechanical properties
Uniform thickness with multi-layer technology
Efficient and continuous production process
Robust design for long-term industrial use
Energy-efficient and easy operation
Certifications
ISO 9001 (Quality Management)
ISO 14001 (Environmental Management)
CE Certification
Plastic Processing Machinery Standards
Benefits
Versatile film production for multiple applications
Cost-effective for bulk film manufacturing
High strength and durability of films
Suitable for packaging, agriculture, and industrial use
Supports recyclable materials
Challenges
High initial investment
Energy consumption can be high
Requires skilled operation and maintenance
Process control needed for uniform film quality
