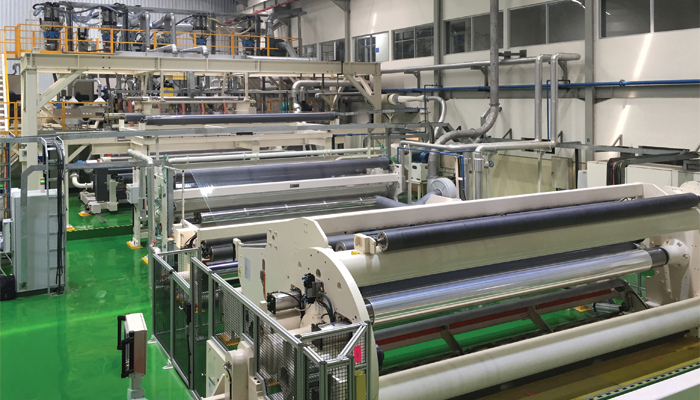

Cast Film Extrusion Plant
Overview
Cast film extrusion plants are advanced industrial systems used to manufacture high-quality plastic films by extruding molten polymer through a flat die onto chilled rollers. These films offer excellent clarity, uniform thickness, and superior surface finish, making them ideal for packaging and industrial applications.
Working Principle
Polymer granules (such as LLDPE, LDPE, PP) are melted in an extruder.
Molten material is passed through a flat (T-die) to form a thin film.
The film is rapidly cooled using chilled rollers for uniform thickness.
Stretching and edge trimming processes improve film properties.
Final film is wound into rolls for further processing or packaging.
Types
Single Layer Cast Film Plant
Multi-Layer Cast Film Plant (3 Layer / 5 Layer)
CPP (Cast Polypropylene) Film Plant
Cling Film / Stretch Film Cast Plant
Automatic High-Speed Cast Film Plant
Applications
Food packaging films
Retail and consumer packaging
Industrial packaging films
Cling films for food wrapping
Lamination films
Technical Specifications
Output capacity: 100 – 1000 kg/hr
Film width: 300 mm – 3000 mm
Film thickness: 10 – 200 microns
Power consumption: 50 – 250 kW
Control system: PLC / fully automatic control
Key Features
Excellent clarity and transparency of films
Uniform thickness and smooth surface finish
High-speed production capability
Energy-efficient and automated system
Multi-layer technology for enhanced properties
Certifications
ISO 9001 (Quality Management)
ISO 14001 (Environmental Management)
CE Certification
Plastic Processing Machinery Standards
Benefits
High-quality film with excellent finish
Cost-effective production for large volumes
Suitable for diverse packaging applications
Improved mechanical and optical properties
Supports recyclable materials
Challenges
High capital investment cost
High energy consumption
Requires skilled operators and maintenance
Process control required for uniform quality
