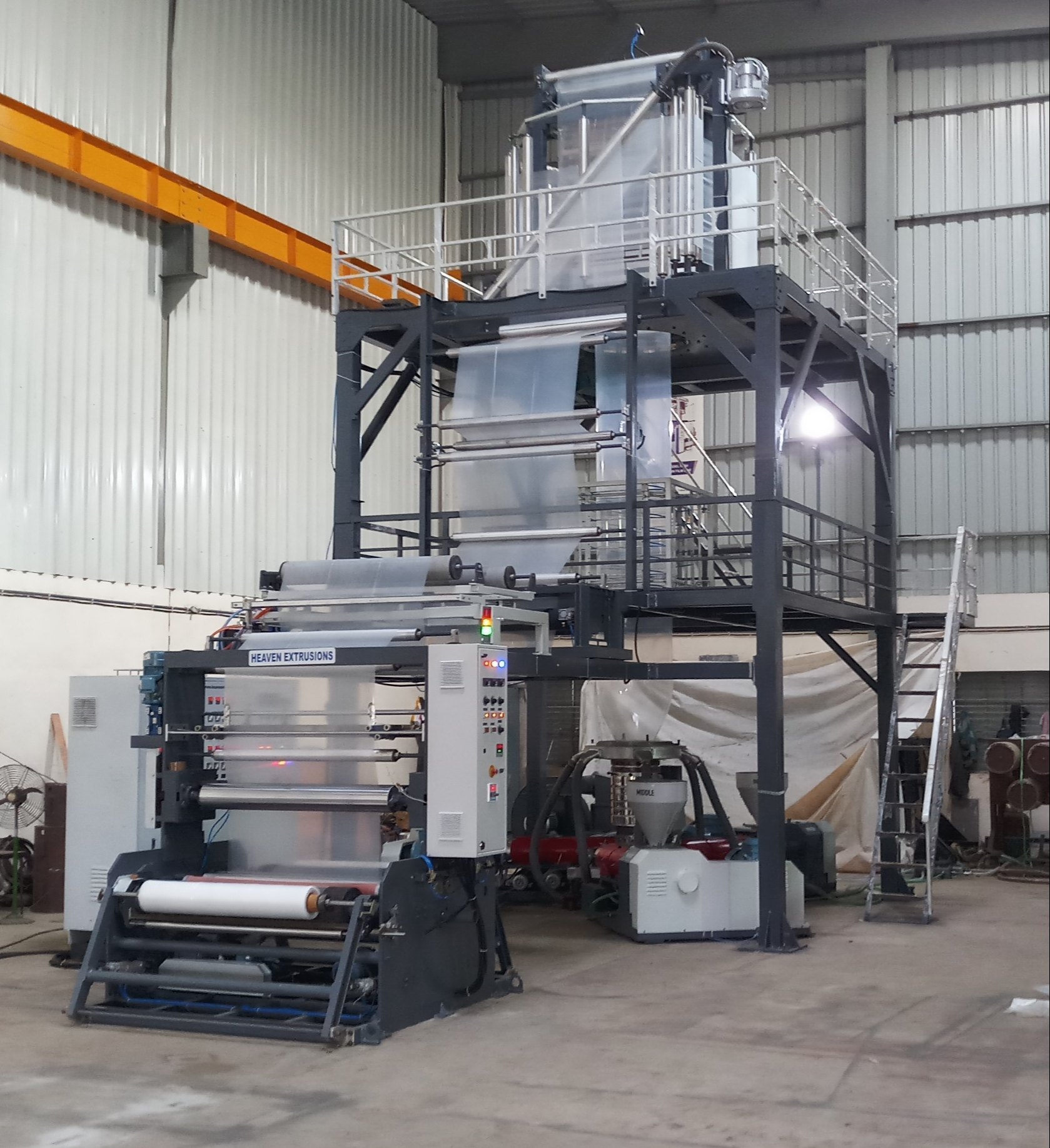

Multilayer Barrier Film Plant
Overview
Multilayer barrier film plants are advanced extrusion systems used to produce high-performance films with multiple layers of different polymers. These films provide excellent barrier properties against oxygen, moisture, light, and contaminants, making them ideal for food, pharmaceutical, and industrial packaging applications.
Working Principle
Multiple polymer resins (such as PE, PP, EVOH, PA) are melted in separate extruders.
Molten layers are combined through a co-extrusion die to form a multilayer structure.
The film is cooled using air or chill rollers to stabilize structure.
Stretching processes enhance mechanical and barrier properties.
Finished film is wound into rolls for packaging applications.
Types
3 Layer Barrier Film Plant
5 Layer Barrier Film Plant
7 Layer Barrier Film Plant
Cast Multilayer Film Plant
Blown Multilayer Film Plant
Applications
Food packaging (vacuum packs, MAP packaging)
Pharmaceutical packaging
Flexible packaging films and pouches
Industrial and chemical packaging
High-barrier retail packaging
Technical Specifications
Output capacity: 150 – 1000 kg/hr
Film width: 300 mm – 3000 mm
Number of layers: 3 – 7 layers
Power consumption: 80 – 300 kW
Control system: PLC / fully automatic control
Key Features
Excellent barrier properties against oxygen, moisture, and gases
Multi-layer structure for enhanced performance
Good clarity and surface finish
High-speed and efficient production
Advanced automation and process control
Certifications
ISO 9001 (Quality Management)
ISO 14001 (Environmental Management)
CE Certification
Food Safety Standards (FDA / HACCP compliant)
Benefits
Superior product protection and extended shelf life
High strength and durability
Suitable for demanding packaging applications
Customizable layer structures for specific needs
Cost-effective in long-term high-performance packaging
Challenges
Very high initial investment cost
Complex operation and maintenance
Precise process control required
Recycling challenges due to multi-layer materials
