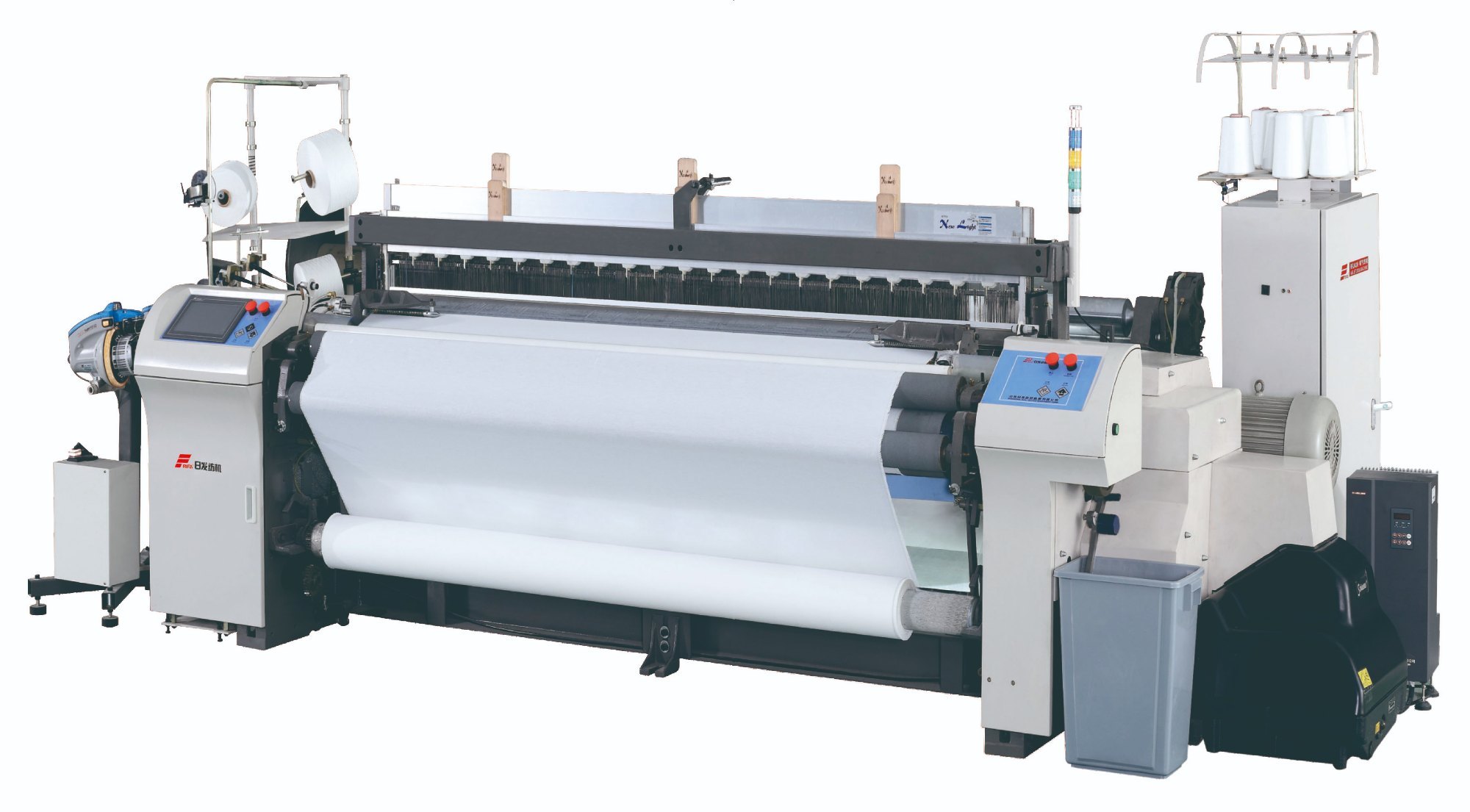

Air Jet Loom
Overview
Air jet looms are advanced high-speed weaving machines that use a stream of compressed air to insert the weft yarn through the warp shed. They are widely used for mass production of lightweight to medium-weight fabrics, especially in modern textile industries.
Working Principle
Compressed air is used to propel the weft yarn across the warp shed.
Warp yarns are arranged longitudinally and opened to form a shed.
Main and relay nozzles guide the weft yarn across the loom width.
Continuous operation ensures high-speed and efficient weaving.
Types
Single Nozzle Air Jet Loom
Multi Nozzle Air Jet Loom
Automatic High-Speed Air Jet Loom
Textile Industry Applications
Cotton and blended fabrics
Shirting and suiting fabrics
Bed sheets and home textiles
Industrial fabrics
Denim and lightweight fabrics
Technical Specifications
Speed: Up to 800 – 1500 picks/min
Fabric width: 150 cm – 400 cm
Air consumption: High (requires compressor)
Power consumption: 3 – 10 kW
Control system: PLC / electronic control
Key Features
Extremely high-speed weaving performance
Efficient weft insertion using compressed air
Low mechanical wear due to fewer moving parts
Suitable for automation and modern textile units
Reduced vibration and smooth operation
Certifications
ISO 9001 (Quality Management)
ISO 14001 (Environmental Management)
CE Certification
Textile Machinery Safety Standards
Benefits
Very high production output
Cost-effective for large-scale fabric production
High fabric quality and consistency
Ideal for modern automated textile plants
Reduced downtime and maintenance
Challenges
High air consumption and energy cost
Noise due to compressed air system
Requires high-quality air filtration and maintenance
Not suitable for very heavy or coarse yarns
